- Passes 10 MHz BUC reference signal with exceptionally low 0.8 dB max insertion loss on pass port
- Blocks 10 MHz by 50 dB min on block port
- Passes DC one port for powering LNB/active antenna at 4A/50 VDC max
- Equally splits full L-Band spectrum with exceptional specs
|698-2700 MHz||0.8 dB*||0.3 dB max||8° max||22 dB min||1.25 : 1 max||1.25 : 1 max|
|10 MHz Pass||0.4 dB max**||N/A||N/A||50 dB min||1.25 : 1 max||1.20 : 1 max|
|10 MHz Block||50 dB min||N/A||N/A||50 dB min||1.25 : 1 max||100 : 1 min|
|*Above 6.02 dB power split||**Total insertion loss|
|Circuit Design||Wilkinson; DC+10 MHz pass 1 port, DC+10 MHz block 1 port|
|Connectors||TNC Female (Jack) 50 Ohm|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Phosphor Bronze, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|4 Way Power Divider RF Input Ratings|
|1.2 : 1||40 Watts||40 Watts|
|2.0 : 1||40 Watts||40 Watts|
|∞||20 Watts||4 Watts|
|4 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||4 X 10 Watts||4 X 1 Watts|
|Non-Coherent||4 X 2 Watts|
PD594A Features & Benefits
PD594A is a 4-way, TNC, L-Band power splitter combiner capable of bi-directional splitting and combining in transmit and receive modes. This passive Wilkinson microstrip unit equally splits the full L-band radio spectrum between two receivers or modems while passing DC and 10 MHz through one port and blocking DC and 10 MHz from the other port. This model is ideal for splitting L-band satellite signals between two receivers. The DC+10 MHz pass port allows one receiver to power an LNB and provides a path for the 10 MHz BUC reference signal necessary to maintain correct transmission uplink frequency. The DC+10 MHz block port prevents redundant feed from the other receiver. A unique feature of this splitter is low insertion loss of the 10 MHz BUC reference signal thru the pass port at less than 0.8 dB compared to conventional models passing 10 MHz with approximately 3.6 dB insertion loss. This remarkably low insertion loss is achieved by filtering the 10 MHz signal from the block port, resulting in more than 50 dB rejection. This conserves virtually all the 10 MHz signal for transmission through the pass port only. The DC pass port is rated 50VDC and 4A. All L-band applications in the frequency range from 698 to 2700 MHz are covered with best in class performance.

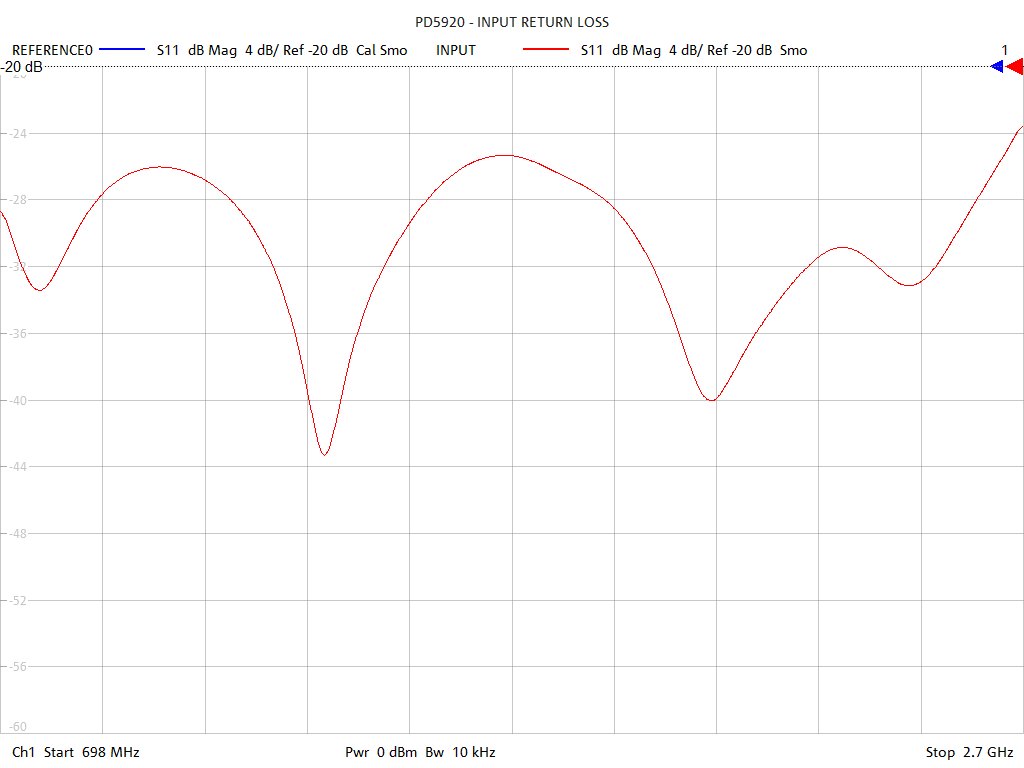

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the 6.02 dB power split), 22 dB min isolation, 1.20:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 4 way power divider test sweeps for details.
Mechanical features include precision CNC, brass, 50 ohm TNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The TNC female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 136 grams. See 2 way L-band splitter outline drawing for more information.
The PD594A 4-way, TNC jack, DC+10 MHz blocking, L-band splitter is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
