GPS220 - GPS, GLONASS, Galileo Splitter

2 Way, TNC, 1000 - 2000 MHz, 50 Ohm, Passive

Previous Image
Next Image
Qty 1-9: $93.47
Qty 10-24: $83.12
Qty 25+:

USD icon click to view pricing Pop-up icon

Product Overview

  • GPS L1 - L5, GLONASS, Galileo splitter
  • Low Insertion Loss (0.2 dB avg)
  • High Port-to-Port Isolation (30 dB avg)
  • Excellent VSWR (1.10 : 1 avg)
  • 15 VDC & 75 mA max on DC block port
  • Tri Alloy TNC Female (Jack) 50 Ohms
Frequency
Range
Insertion Loss
above 3.01 dB
Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
1000-2000 MHz 0.4 dB max 0.2 dB max 3° max 22 dB min 1.20 : 1 max 1.20 : 1 max
Mechanical Specifications
Circuit Design Wilkinson; 1 DC pass
, 1 DC block w/ 200Ω internal load
Connectors TNC Female, 50 Ohm Coaxial
Connector Body Brass, Tri-Alloy Plate
Connector Pin Beryllium Copper, Gold Plate
Connector Insulator PTFE, Virgin Electrical Grade
Housing Aluminum, Clear Chem Film
Operating Temp -65°C to +85°C
Weight 136 Grams
2 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180° Out-of-Phase
1.2 : 1 20 Watts 20 Watts
2.0 : 1 20 Watts 5 Watts
10 Watts 0.5 Watts
2 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180° Out-of-Phase
Coherent 2 X 10 Watts 2 X 0.25 Watts
Non-Coherent 2 X 0.5 Watts

GPS220 Features & Benefits

Overview

GPS220 is a two way, passive, GPS signal splitter ideal for splitting a GPS antenna signal between two receivers while providing a DC current path to power a remotely located active GPS antenna from one receiver while blocking the DC path from the other. Furnished with TNC female connectors all ports. A special feature of this unit is the 200 ohm internal load which provides a current drain for the GPS receiver not powering the active antenna. Some GPS receivers incorrectly sense an antenna fault when there is no current draw. The 200 ohm internal load provides a simulated antenna current drain which prevents receiver faulting. Max voltage rating at the DC blocked port is 15 VDC; maximum current rating is 75 mA. Max voltage rating at the DC pass port is 50 VDC; max current rating is 2000 mA.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the -3.01 dB power split), 22 dB min isolation, 1.20:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 2 way GPS splitter test sweeps for details. DC block and 200 ohm internal load are specially designed to be RF transparent with negligible effect on performance.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm TNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and lowcontact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" dia (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The TNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 136 grams. See 2 way GPS signal splitter outline drawing for more information.

Applications

Model GPS220 is a 2-way, passive, TNC, GNSS splitter covering all frequencies from 1000 to 2000 MHz with best-in-class performance for GPS L1, L2, L3, L4, L5, GLONASS and Galileo global navigation satellite positioning system applications, and is deployed worldwide.

GPS220 - 2 Way Power Divider Combiner Test Data

Close Test Data

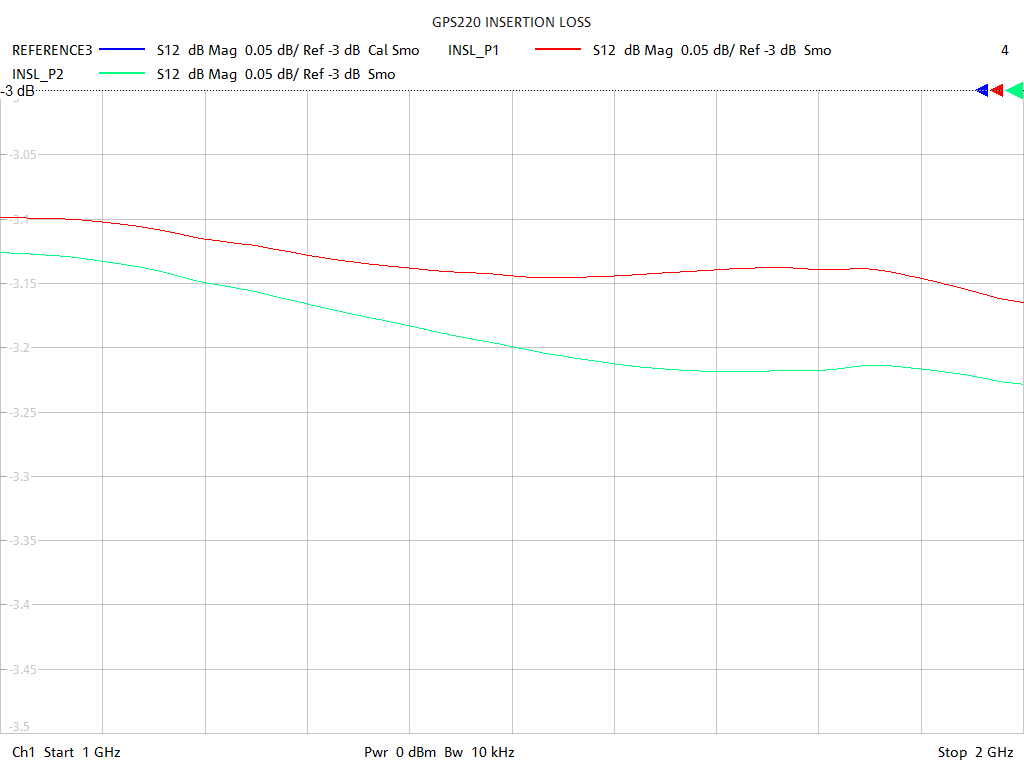

Insertion Loss Test Sweep for GPS220
Insertion Loss Test Sweep for GPS220
Port-to-Port Isolation Test Sweep for GPS220
Port-to-Port Isolation Test Sweep for GPS220
Input Return Loss Test Sweep for GPS220
Input Return Loss Test Sweep for GPS220

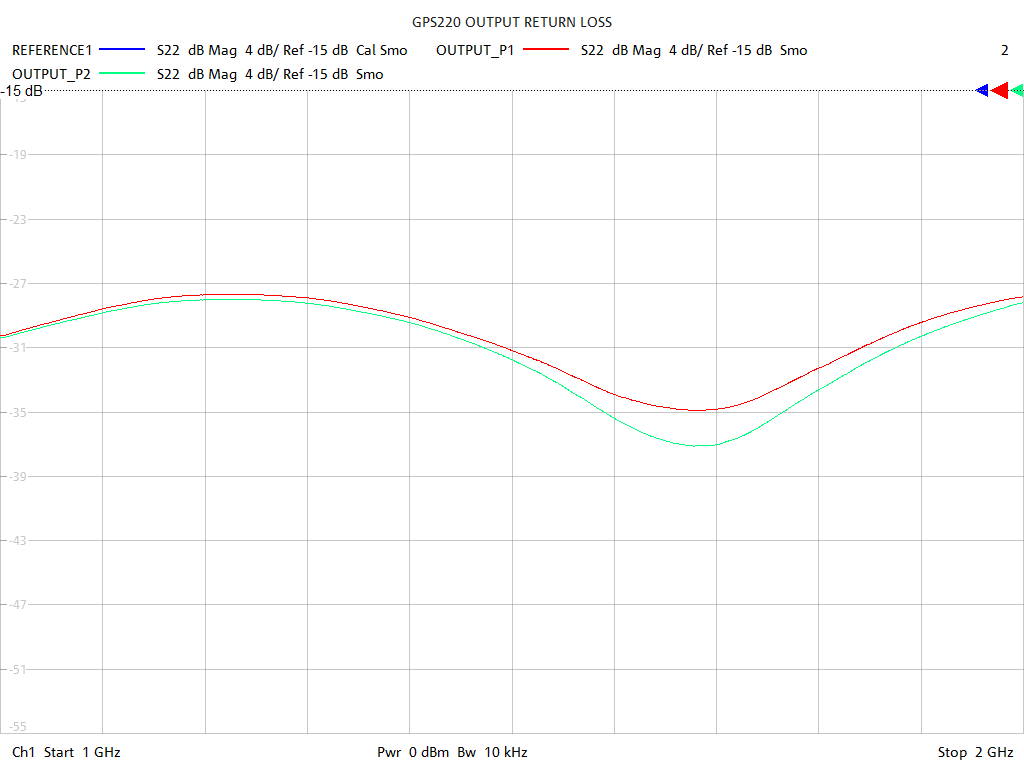

Output Return Loss Test Sweep for GPS220
Output Return Loss Test Sweep for GPS220
