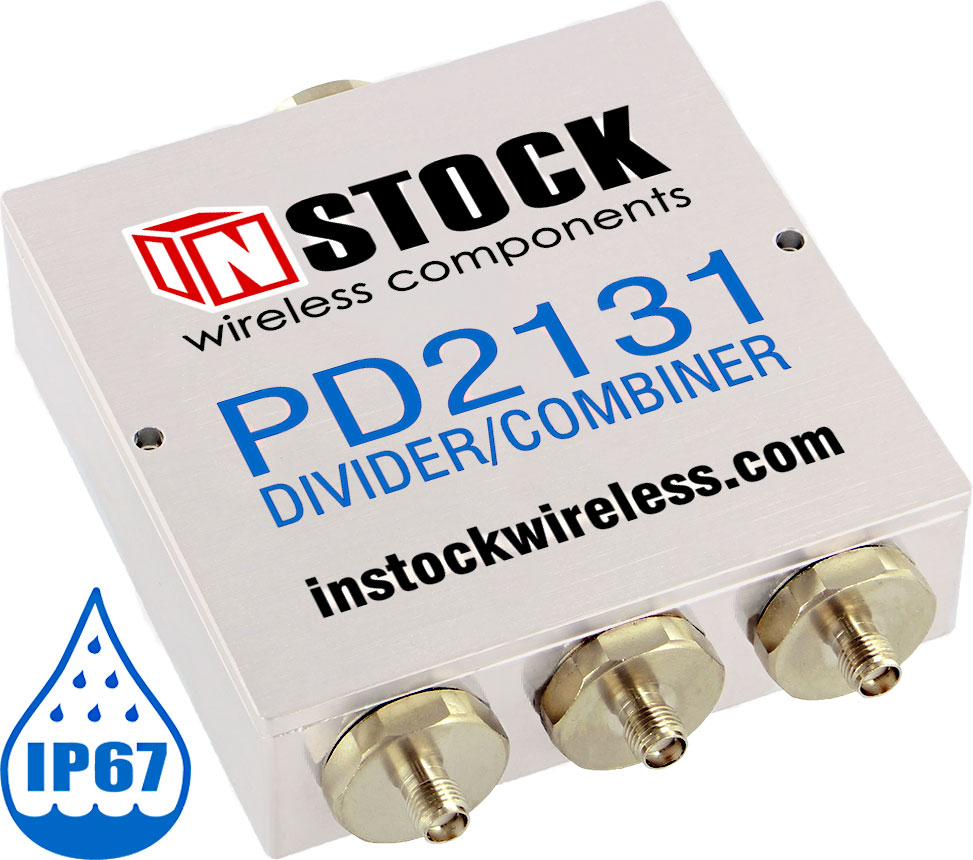

PD2131 - RF Power Splitter, Combiner, Divider

IP67 Outdoor, 3 Way, SMA, 698 - 2700 MHz, 50 Ohm

Previous Image
Next Image
Qty 1-9: $74.71
Qty 10-24: $66.45
Qty 25+:

USD icon click to view pricing Pop-up icon

Product Overview

  • Wideband Frequency (698 - 2700 MHz)
  • Low Insertion Loss (0.3 dB avg)
  • High Port-to-Port Isolation (25 dB avg)
  • Excellent VSWR (1.10 : 1 avg)
  • Outdoor Weatherproof Construction
  • Tri Alloy SMA Female (Jack) Low PIM
Frequency
Range
Insertion Loss
above 4.77 dB
Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698-2700 MHz 0.7 dB max 0.2 dB max 3° max 18 dB min 1.35 : 1 max 1.25 : 1 max
Mechanical Specifications
Circuit Design Wilkinson Microstrip passes
DC Current thru all ports
Connectors SMA Female, 50 Ohm Coaxial
Connector Body Brass, Tri-Alloy Plate
Connector Pin Beryllium Copper, Gold Plate
Connector Insulator PTFE, Virgin Electrical Grade
Housing Aluminum, Clear Chem Film
Operating Temp -65°C to +85°C
Weight 436 Grams
3 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180° Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 20 Watts
20 Watts 2 Watts
3 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180° Out-of-Phase
Coherent 3 X 13.3 Watts 3 X 0.66 Watts
Non-Coherent 3 X 1.33 Watts

PD2131 Features & Benefits

Overview

PD2131 is an outdoor, IP67 water and weather resistant, 3 way, wideband, 50 ohm, power divider, power combiner furnished with SMA female jack coaxial connectors. All wireless band applications in the frequency range from 698 to 2700 MHz are covered with best in class RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 3 way power divider input rating tables for more information.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). A true 3 way RF power divider, power combiner with equal power split and balance, the PD2131's electrical performance is highlighted by 0.7 dB max insertion loss (above the -4.77 dB power split), 18 dB min isolation, 1.35:1 max input VSWR and 1.25:1 max output VSWR. Equal power split and balance is displayed by 0.2 dB max amplitude balance and 3 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 3 way SMA Female power divider test sweeps for specific details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold-plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear passivated finish. Provision for secure mounting is provided by two .125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and finish free of hexavalent chromium. Water and weather resistance for uninterrupted safe outdoor use is is achieved through silicone o-rings sealing all components.

Physical

Exterior housing dimensions are 3.28" wide by 3.28" deep by 1.00" high (83.3 x 83.3 x 25.4 mm). The SMA connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 436 grams. Rated for continuous water and weather resistant exterior use. May also be used indoors. See 3 way power divider outline drawing for more details.

Applications

The PD2131, IP67 weatherproof, three way, SMA female, RF power divider (splitter) combiner is ideal for a broad range of outdoor wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.

PD2131 - 3 Way Power Divider Combiner Test Data

Close Test Data
Insertion Loss Test Sweep for PD2131
Insertion Loss Test Sweep for PD2131
Port-to-Port Isolation Test Sweep for PD2131
Port-to-Port Isolation Test Sweep for PD2131
Input Return Loss Test Sweep for PD2131
Input Return Loss Test Sweep for PD2131
Output Return Loss Test Sweep for PD2131
Output Return Loss Test Sweep for PD2131
