PD2202 - Power Divider Combiner, 2 Way, SMA
RF Splitter for Distributed Antenna Systems (DAS)
USD icon click to view pricing Pop-up icon
- Ideal for DAS (698 - 2700 MHz)
- Low Insertion Loss (0.2 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy SMA (2) & Type N (1)
above 3.01 dB
|698-2700 MHz||0.4 dB max||0.2 dB max||2° max||22 dB min||1.25 : 1 max||1.15 : 1 max|
|Circuit Design|| Wilkinson Microstrip passes
DC Current thru all ports
|Connectors||SMA & N, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper & Phospher Bronze, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|2 Way Power Divider RF Input Ratings|
|1.2 : 1||40 Watts||40 Watts|
|2.0 : 1||40 Watts||10 Watts|
|∞||20 Watts||1 Watt|
|2 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||2 X 20 Watts||2 X 0.5 Watts|
|Non-Coherent||2 X 1 Watt|
PD2202 Features & Benefits
PD2202 is a RoHS compliant, 2 way, wideband, 50 ohm, RF power divider, power combiner furnished with SMA-jack (female) coaxial connectors with an N-Type female input connector. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 2 way power divider input rating tables for additional details. The larger N-Type common port connector offers a more rugged and secure connection that is especially useful when you need to share a large diameter cable feed between multiple SMA devices.

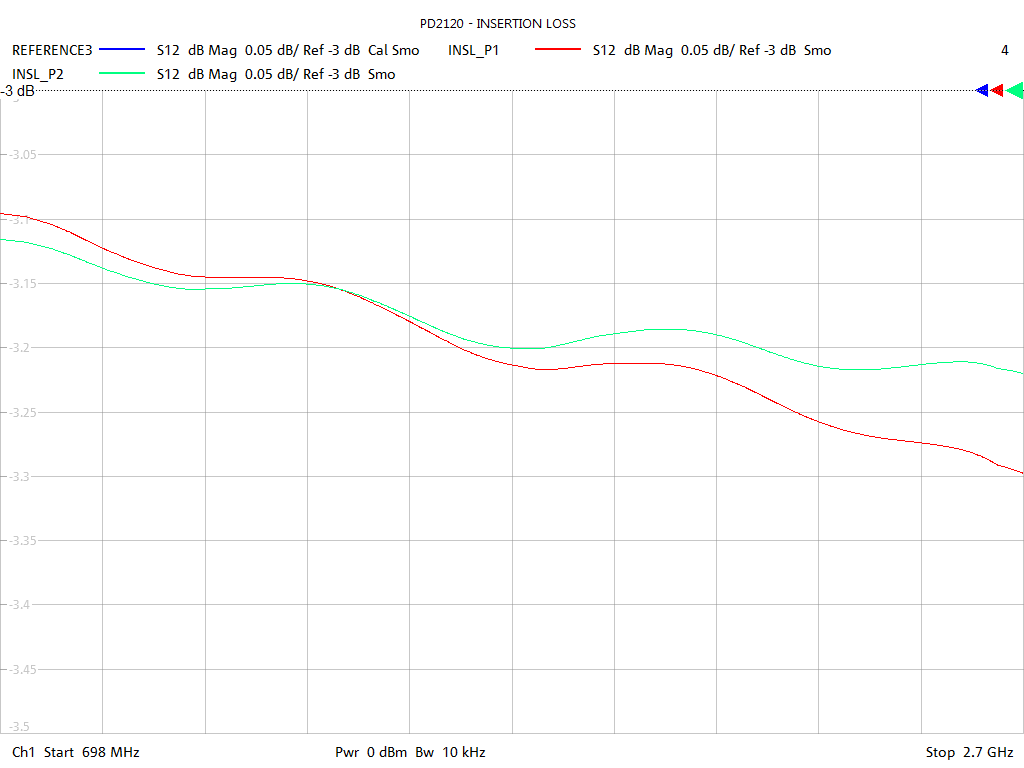

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the 3.01 dB power split), 22 dB min isolation, 1.25:1 max input VSWR and 1.15:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 2 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 2 way power divider test sweeps for details.
Mechanical features include precision CNC, brass, 50 ohm SMA and N-type coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper (SMA) and gold plated phospher bronze (N) for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. The N-type female (jack) connector extends 0.65" (16.3 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 146 grams. See 2 way SMA+N splitter outline drawing for more information.
The PD2202 2-way, SMA, 698-2700 MHz power splitter combiner with N-type jack common port (sum) is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
