Power Splitter / Power Combiner

PD2204 - RF Microwave Power Divider Combiner

4-Way, SMA Female w/ N-Type Input, 698-2700 MHz

Power Divider Price Quote Request Online
SMA-jack Power Divider Combiner w/ Type N Female common port for GSM, CDMA, Cell Band, 3G, 4G LTE, DAS

3G, 4G LTE, DAS Power Divider Combiner
SMA w N-Type Common Port, 698-2700 MHz

  • Wideband Frequency (698 - 2700 MHz)
  • Low Insertion Loss (0.4 dB avg)
  • High Port to Port Isolation (30 dB avg)
  • Excellent VSWR (1.10 : 1 avg)
  • RoHS Compliant Splitter Construction
  • Tri Alloy SMA (4) & Type N (1)
4 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180°
Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 20 Watts
VSWR = infinity (open or short) 20 Watts 2 Watts
4 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180°
Out-of-Phase
Coherent 4 X 10 Watts 4 X 0.5 Watts
Non-Coherent 4 X 1 Watt
Mechanical Specifications
Circuit Design ………

Wilkinson Microstrip passes
DC Current thru all ports
Connectors ……………  SMA & N, 50 Ohm Coaxial
Body ……………………  Brass, Tri-Alloy Plate
Connector Pin …  Beryllium Copper & Phospher Bronze, Gold Plate
Insulator ……………  PTFE, Virgin Electrical Grade
Housing …………………  Aluminum, Clear Chem Film
Operating Temp …  -65°C to +85°C
Weight ……………………  396 Grams

PD2204 - SMA+N Power Divider Combiner Specifications

Frequency Range (MHz) Insertion Loss above 6.02 dB Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698-2700 0.8 dB max 0.2 dB max 4° max 22 dB min 1.25 : 1 max 1.15 : 1 max

PD2204 - Features & Benefits

Overview

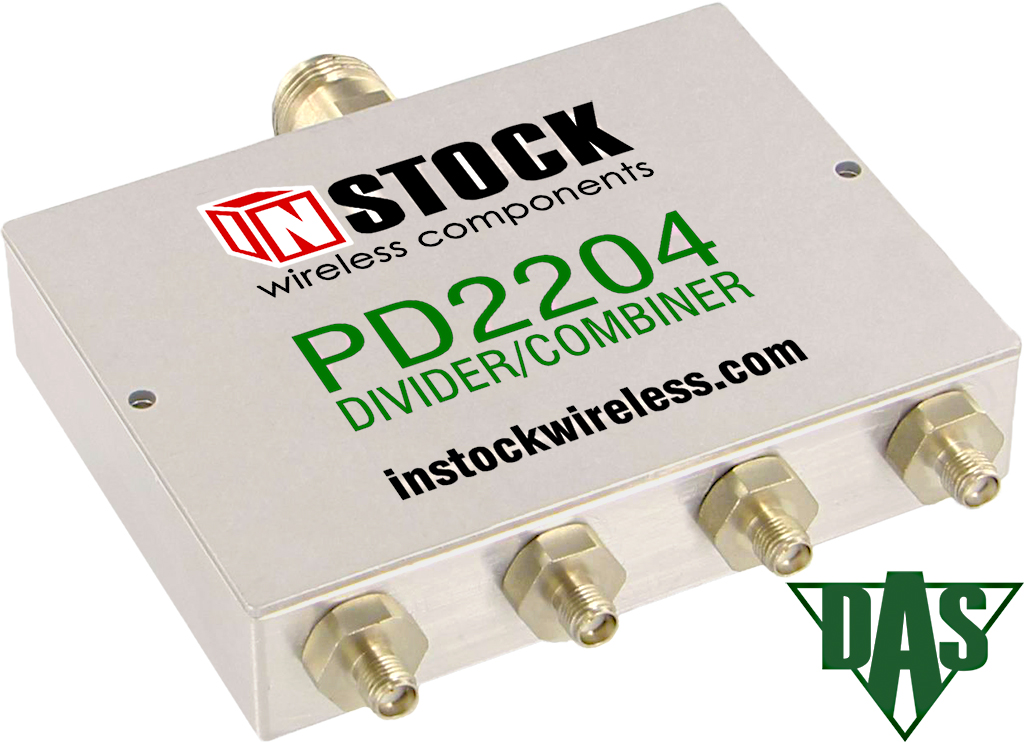

PD2204 is a RoHS compliant, 4 way, wideband, 50 ohm, RF power divider, power combiner furnished with SMA-jack (female) coaxial connectors with an N-Type female input connector. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 4 way power divider input rating tables for additional details. The larger N-Type common port connector offers a more rugged and secure connection that is especially useful when you need to share a large diameter cable feed between multiple SMA devices.

Electrical

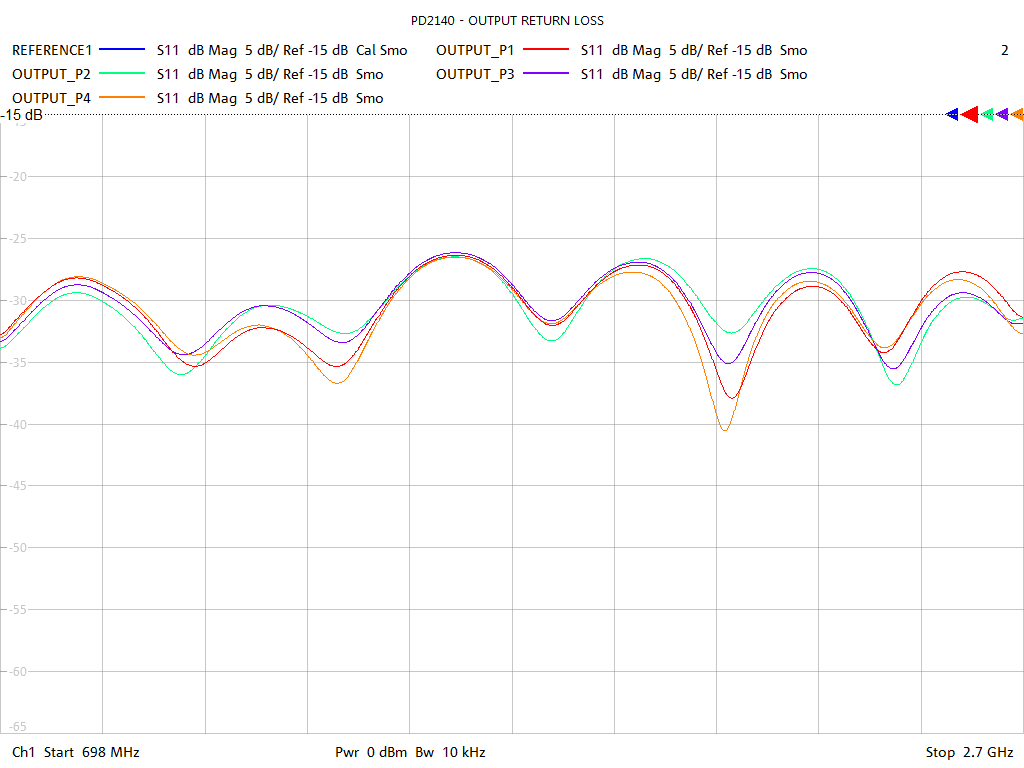

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.8 dB max insertion loss (above the 6.02 dB power split), 22 dB min isolation, 1.25:1 max input VSWR and 1.15:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 4 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 4 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm SMA and N-type coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper (SMA) and gold plated phospher bronze (N) for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 3.98" wide by 2.98" deep by 0.88" high (101.1 x 75.7 x 22.2 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. The N-type female (jack) connector extends 0.65" (16.3 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 396 grams. See 4 way SMA+N splitter outline drawing for more information.

Applications

The PD2204 4-way, SMA, 698-2700 MHz power splitter combiner with N-type jack common port (sum) is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.

Options / Additional Models

SMA-Jack: An SMA version of this four way power splitter is available with SMA female connectors on all ports and spanning 698-2700 MHz. PD2140

DC Blocking: Two DC blocking versions of this 4way divider combiner available:

PD5140: DC pass 1 port, DC block other ports. Typically used for powering an active antenna through the DC pass port of the RF power divider splitter.

PD5142: DC block 4 ports. Typically used in combining applications to prevent passing DC to sum port or other input.

GPS Splitter: 1x4 GPS antenna signal splitter covering GPS / GNSS global navigation satellite system positioning frequency bands. GPS410
