Power Splitter / Power Combiner

PD2730 - RF Microwave Power Divider Combiner

3-Way, QMA Female, 698-2700 MHz, 40 Watts

Power Divider Price Quote Request Online
QMA Power Divider Combiner for GSM, CDMA, Cell Band, 3G, 4G LTE, DAS

3G, 4G LTE, DAS Power Divider Combiner
RoHS, QMA Female, 698 - 2700 MHz, 40 Watts

  • Wideband Frequency (698 - 2700 MHz)
  • Low Insertion Loss (0.3 dB avg)
  • High Port to Port Isolation (30 dB avg)
  • Excellent VSWR (1.10 : 1 avg)
  • RoHS Compliant Splitter Construction
  • Tri Alloy QMA Female (Jack) 50 Ohm
3 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180°
Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 10 Watts
VSWR = infinity (open or short) 20 Watts 1 Watt
3 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180°
Out-of-Phase
Coherent 3 X 13.3 Watts 3 X 0.33 Watts
Non-Coherent 3 X 0.66 Watts
RF Splitter Combiner QMA-jack Outline Drawing
Mechanical Specifications
Circuit Design ………

Wilkinson Microstrip passes
DC Current thru all ports
Connectors ……………  QMA Female, 50 Ohm Coaxial
Body ……………………  Brass, Tri-Alloy Plate
Connector Pin …  Beryllium Copper, Gold Plate
Insulator ……………  PTFE, Virgin Electrical Grade
Housing …………………  Aluminum, Clear Chem Film
Operating Temp …  -65°C to +85°C
Weight ……………………  294 Grams

PD2730 - QMA Power Divider Combiner Specifications

Frequency Range (MHz) Insertion Loss above 4.77 dB Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698-2700 0.6 dB max 0.2 dB max 3° max 18 dB min 1.30 : 1 max 1.25 : 1 max

PD2730, 698 - 2700 MHz QMA Splitter Combiner Test Data

QMA Power Divider Combiner, 3 Way - Insertion Loss
Insertion Loss Test Sweep for Model PD2730 from INSTOCK Wireless.
QMA Power Divider Combiner, 3 Way - Isolation
Isolation Test Sweep for Model PD2730 from INSTOCK Wireless.
QMA Power Divider Combiner, 3 Way - VSWR
Input VSWR Test Sweep for Model PD2730 from INSTOCK Wireless. Output VSWR Test Sweep for Model PD2730 from INSTOCK Wireless.

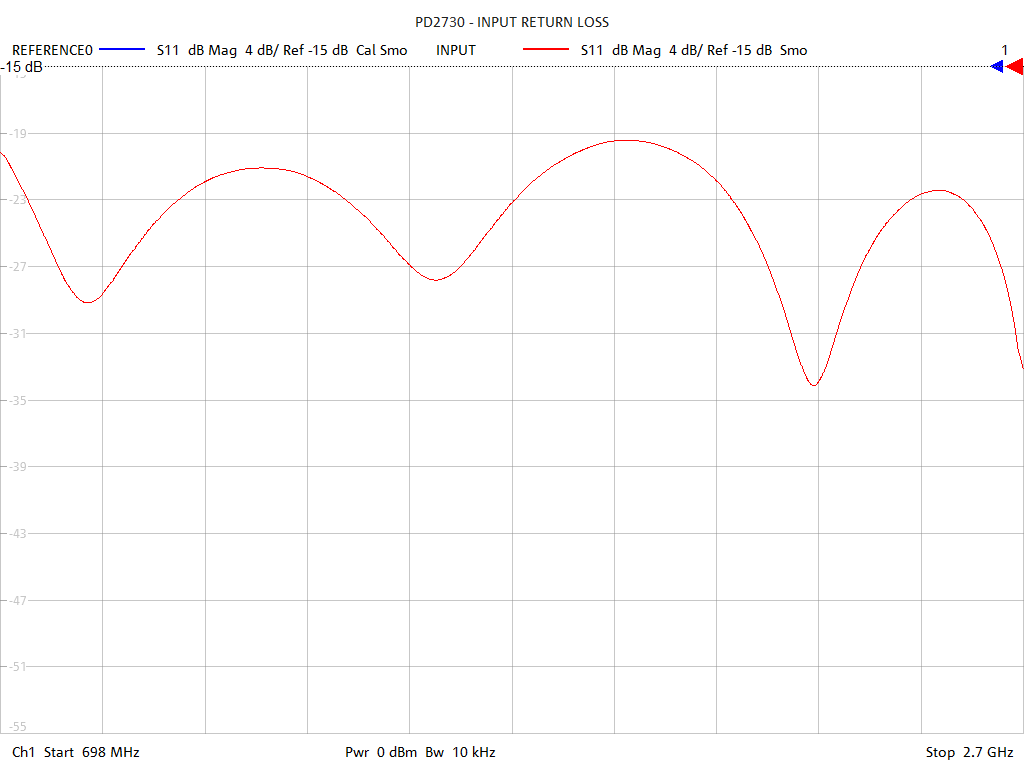

Input Return Loss

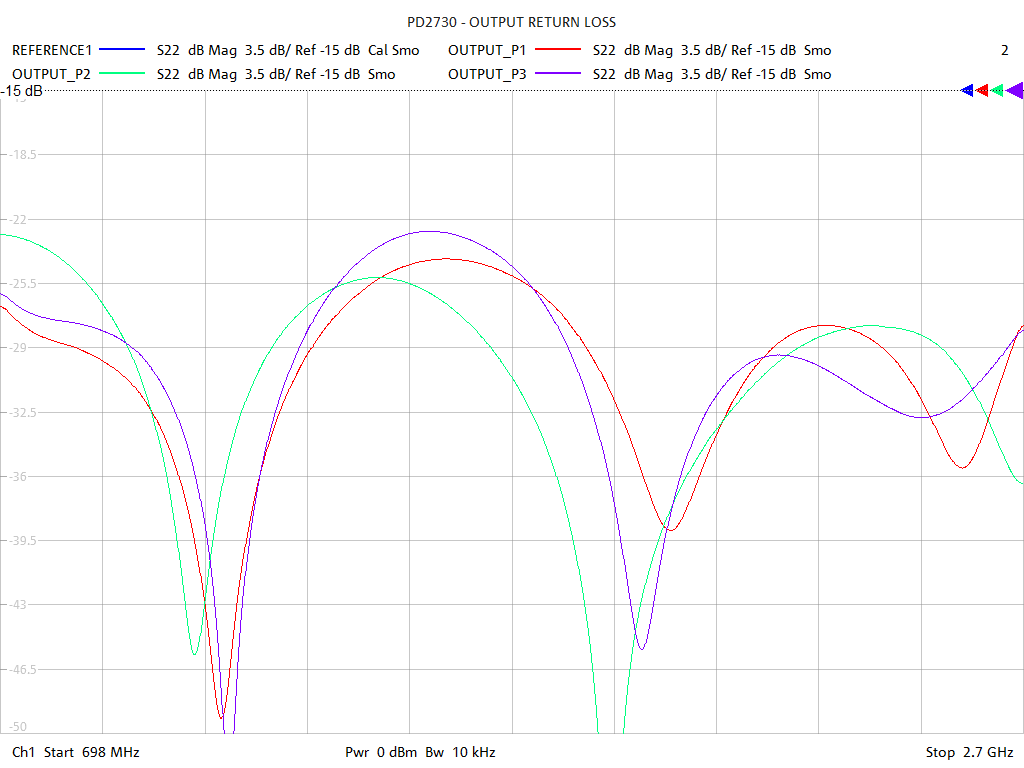

Output Return Loss

PD2730 - Features & Benefits

Overview

PD2730 is a RoHS compliant, 3 way, wideband, 50 ohm, RF power divider, power combiner furnished with QMA jack female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 3 way power divider input rating tables for additional details.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.6 dB max insertion loss (above the 4.77 dB power split), 22 dB min isolation, 1.30:1 max input VSWR and 1.25:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 3 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm QMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 2.98" wide by 2.98" deep by 0.88" high (75.7 x 75.7 x 22.2 mm). The QMA female (jack) connectors extend 0.56" (14.3 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 294 grams. See 3 way QMA splitter outline drawing for more information.

Applications

The PD2730 3-way, QMA-jack, 698-2700 MHz power splitter combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.

Options / Additional Models

SMA (Threaded): An SMA version of this three way power splitter is available with threaded SMA-jack female connectors on all ports and spanning 698-2700 MHz. PD2130

DC Blocking: Two DC blocking versions of this 3way divider combiner available:

PD5130: DC pass 1 port, DC block other ports. Typically used for powering an active antenna through the DC pass port of the RF power divider splitter.

PD5132: DC block 3 ports. Typically used in combining applications to prevent passing DC to sum port or other input.

GPS Splitter: 1x3 GPS antenna signal splitter covering GPS / GNSS global navigation satellite system positioning frequency bands. GPS310
