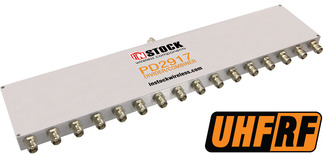

PD2917 - RF Power Divider Combiner
16-Way, TNC Female, 698-2700 MHz, 40 W
USD icon click to view pricing Pop-up icon
- Wideband Frequency (698 - 2700 MHz)
- Low Insertion Loss (1.0 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.2 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy TNC Female (Jack) Low PIM
above 12.04 dB
|698-2700 MHz||1.8 dB max||0.6 dB max||10° max||18 dB min||1.50 : 1 max||1.20 : 1 max|
|Circuit Design|| Wilkinson Microstrip passes
DC Current thru all ports
|Connectors||TNC Female, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|16 Way Power Divider RF Input Ratings|
|1.2 : 1||40 Watts||40 Watts|
|2.0 : 1||40 Watts||40 Watts|
|∞||20 Watts||8 Watts|
|16 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||16 X 2.5 Watts||16 X 0.5 Watts|
|Non-Coherent||16 X 1 Watt|
PD2917 Features & Benefits
PD2917 is a RoHS compliant, 16 way, wideband, 50 ohm, RF power divider, power combiner furnished with TNC jack female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 16 way power divider input rating tables for additional details.
The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 1.8 dB max insertion loss (above the 12.04 dB power split), 20 dB min isolation, 1.50:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.6 dB amplitude balance and 10 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 16 way power divider test sweeps for details.
Mechanical features include precision CNC, brass, 50 ohm TNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by four 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 15.75" wide by 3.48" deep by 0.88" high (400.1 x 88.4 x 22.2 mm). The TNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 1704 grams. See 16 way TNC splitter outline drawing for more information.
The PD2912 16-way, TNC-jack, 698-2700 MHz power splitter combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in UHF networks encompassing Land Mobile Radio System (LMRS), Terrestrial Trunked Radio (TETRA), and Radio Frequency Identification (RFID).
