PD504B - DC & 10 MHz Block L-Band Splitter

4 Way, N Type, 698 - 2700 MHz, Block DC + 10 MHz

Previous Image
Next Image
Qty 1-9: $148.46
Qty 10-24: $128.70
Qty 25+:

USD icon click to view pricing Pop-up icon

Product Overview

  • Blocks 10 MHz BUC reference signal with exceptionally low 0.1dB max insertion loss on pass port
  • Blocks 10 MHz by 50 dB min on block port
  • Blocks DC 1 port for powering LNB/active antenna
  • 50 VDC max DC voltage
  • 4A max DC current
Frequency
Range
Insertion Loss
above
Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698-2700 MHz 0.8 dB max* 0.3 dB max 4° max 22 dB min 1.25 : 1 max 1.20 : 1 max
10 MHz Block 50 dB min N/A N/A 50 dB min 100 : 1 max 100 : 1 min
*Above 6.02 dB power split
Mechanical Specifications
Circuit Design Wilkinson; All ports block DC+10 MHz
Connectors N-type Female (Jack) 50 Ohm
Connector Body Brass, Tri-Alloy Plate
Connector Pin Phosphor Bronze, Gold Plate
Connector Insulator PTFE, Virgin Electrical Grade
Housing Aluminum, Clear Chem Film
Operating Temp -65°C to +85°C
Weight 452 Grams
4 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180° Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 40 Watts
20 Watts 4 Watts
4 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180° Out-of-Phase
Coherent 4 X 10 Watts 4 X 1 Watts
Non-Coherent 4 X 2 Watts

PD504B Features & Benefits

Overview

PD504B is a 4-way N-type power divider operating from 698-2700 MHz and blocking DC+10 MHz from four (4) ports. This passive Wilkinson microstrip unit equally splits the full L-band radio spectrum between two receivers or modems while blocking DC and 10 MHz from both ports. This model is ideal for satellite and VSAT applications splitting the down converted L-band signal equally between two receivers or modems in cases where DC current and the 10 MHz reference signal must be blocked from, respectively, the LNB and BUC. With integrated filters, the 10 MHz signal is rejected by more than 50 dB without affecting integrity of signals in the L-band spectrum. This unit is rated to withstand 50VDC. All L-band applications in the frequency range from 698 to 2700 MHz are covered with best in class performance.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the 3.01 dB power split), 22 dB min isolation, 1.20:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 4 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm N type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The N type female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 174 grams. See 4 way L-band splitter outline drawing for more information.

Applications

The PD504B 4-way, type N jack, DC+10 MHz blocking, L-band splitter is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.

PD504B - 4 Way Power Divider Combiner Test Data

Close Test Data
Insertion Loss Test Sweep for PD504B
Insertion Loss Test Sweep for PD504B
Port-to-Port Isolation Test Sweep for PD504B
Port-to-Port Isolation Test Sweep for PD504B
Input Return Loss Test Sweep for PD504B
Input Return Loss Test Sweep for PD504B

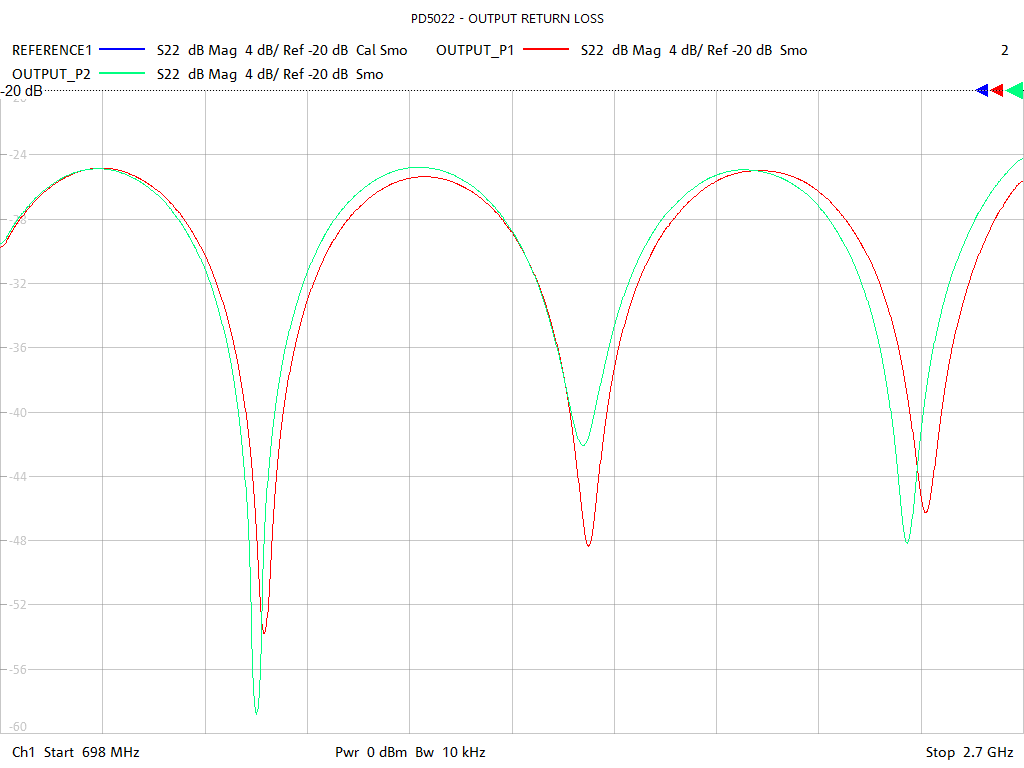

Output Return Loss Test Sweep for PD504B
Output Return Loss Test Sweep for PD504B
