- Wideband Frequency (350 - 1000 MHz)
- Low Insertion Loss (0.2 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy SMA Female (Jack) Low PIM
above 3.01 dB
|350-1000 MHz||0.6 dB max||0.2 dB max||2° max||22 dB min||1.25 : 1 max||1.15 : 1 max|
|Circuit Design|| Wilkinson Microstrip passes
DC Current thru all ports
|Connectors||SMA Female, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|2 Way Power Divider RF Input Ratings|
|1.2 : 1||30 Watts||30 Watts|
|2.0 : 1||30 Watts||7.5 Watts|
|∞||15 Watts||0.75 Watts|
|2 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||2 X 15 Watts||2 X 0.375 Watts|
|Non-Coherent||2 X 0.75 Watts|
PD2420 Features & Benefits
PD2420 is a RoHS compliant, 2 way, wideband, 50 ohm, RF power divider, power combiner furnished with SMA female coaxial connectors. All wireless band frequencies in the range from 350 to 1000 MHz are covered with optimal RF performance. Max microwave input power levels up to 30 watts can be handled in both power splitter and power combiner applications. See 2 way power divider input rating tables for additional details.

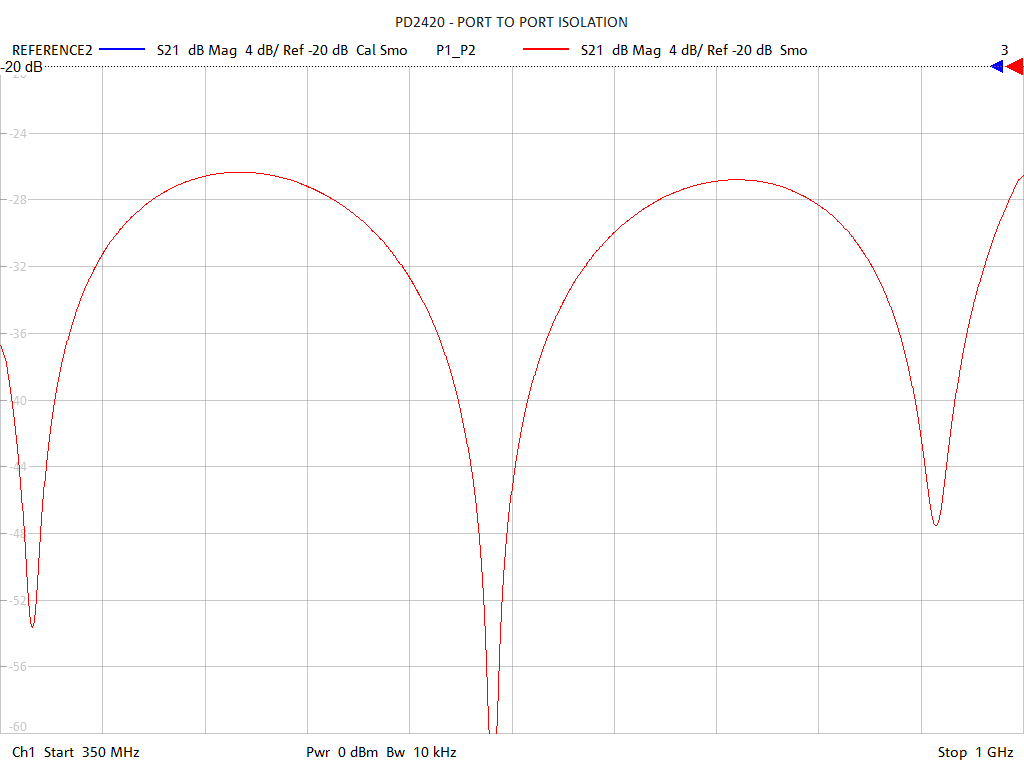

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). Electrical performance is highlighted by 0.6 dB max insertion loss (above the -3.01 dB power split), 22 dB min isolation, 1.25:1 max input VSWR and 1.15:1 max output VSWR. Equal power split and balance is displayed by 0.2 dB max amplitude balance and 2 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 2 way power divider test sweeps for specific details.
Mechanical features include precision CNC, brass, 50 ohm SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 133 grams. See 2 way power divider outline drawing for more information.
The PD2420 2-way, SMA Female (jack), power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, UMTS, TETRA, and RFID.
