PD5132 - L Band Splitter, DC Block All Ports

3 Way, SMA Female, 698 - 2700 MHz, 50 Ohm Coax

Power Divider Price Quote Request Online
RF Power Splitter, All Ports DC Blocked, 3 Way, SMA

3 way DC blocking L-band splitter
DC block three (3) ports

  • Wideband Frequency (698 - 2700 MHz)
  • Low Insertion Loss (0.3 dB avg)
  • High Port to Port Isolation (30 dB avg)
  • Excellent VSWR (1.10 : 1 avg)
  • 50 VDC maximum on DC block ports
  • Tri Alloy SMA Female (Jack) Low PIM
3 Way Splitter Combiner RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180°
Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 20 Watts
VSWR = infinity (open or short) 20 Watts 2 Watts
3 Way Splitter Combiner RF Input Ratings
Input Signals In-Phase 180°
Out-of-Phase
Coherent 3 X 13.3 Watts 3 X 0.66 Watts
Non-Coherent 3 X 1.33 Watt

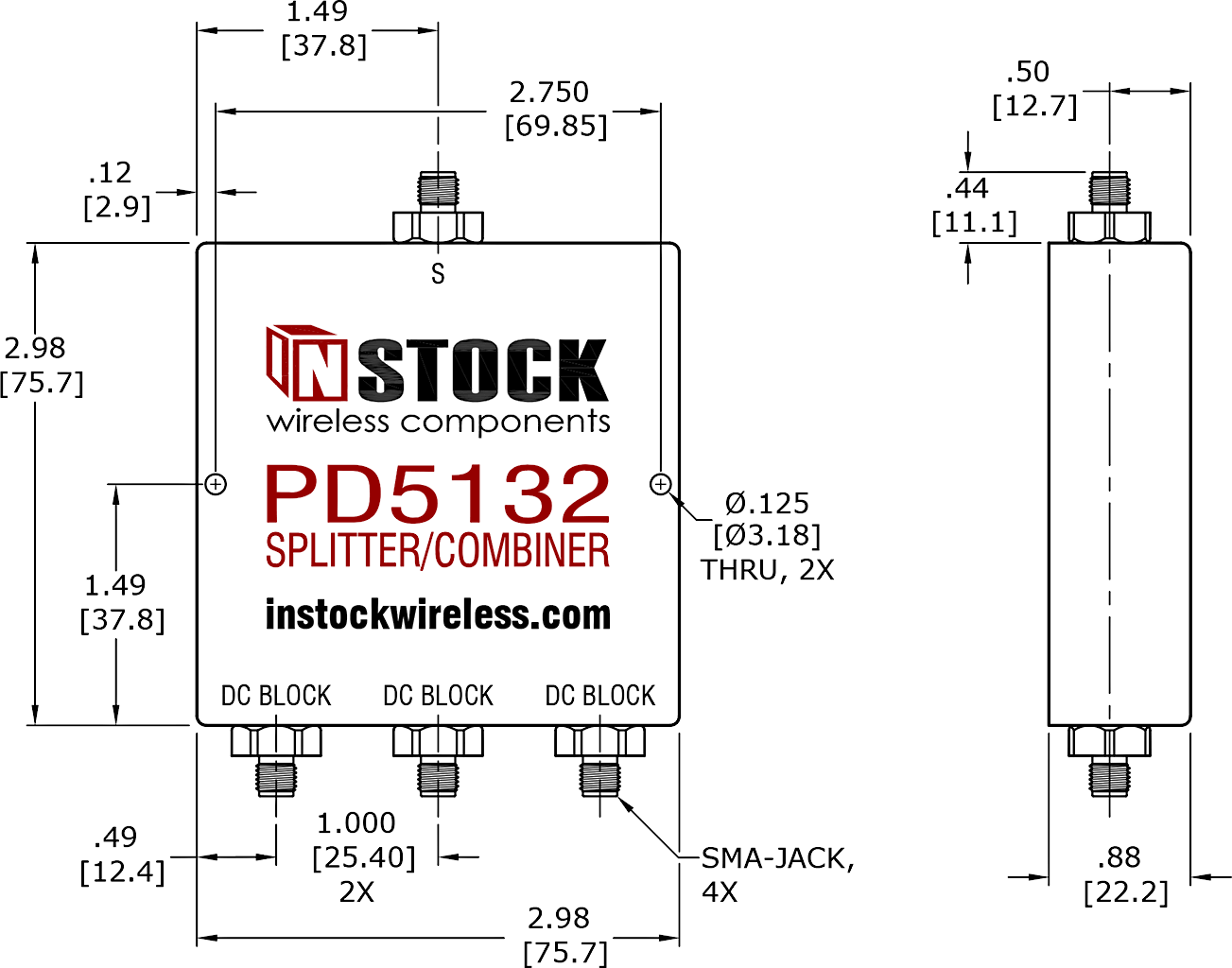

DC Block Power Splitter Combiner, 3 Way, SMA Outline Drawing
Mechanical Specifications
Circuit Design ………

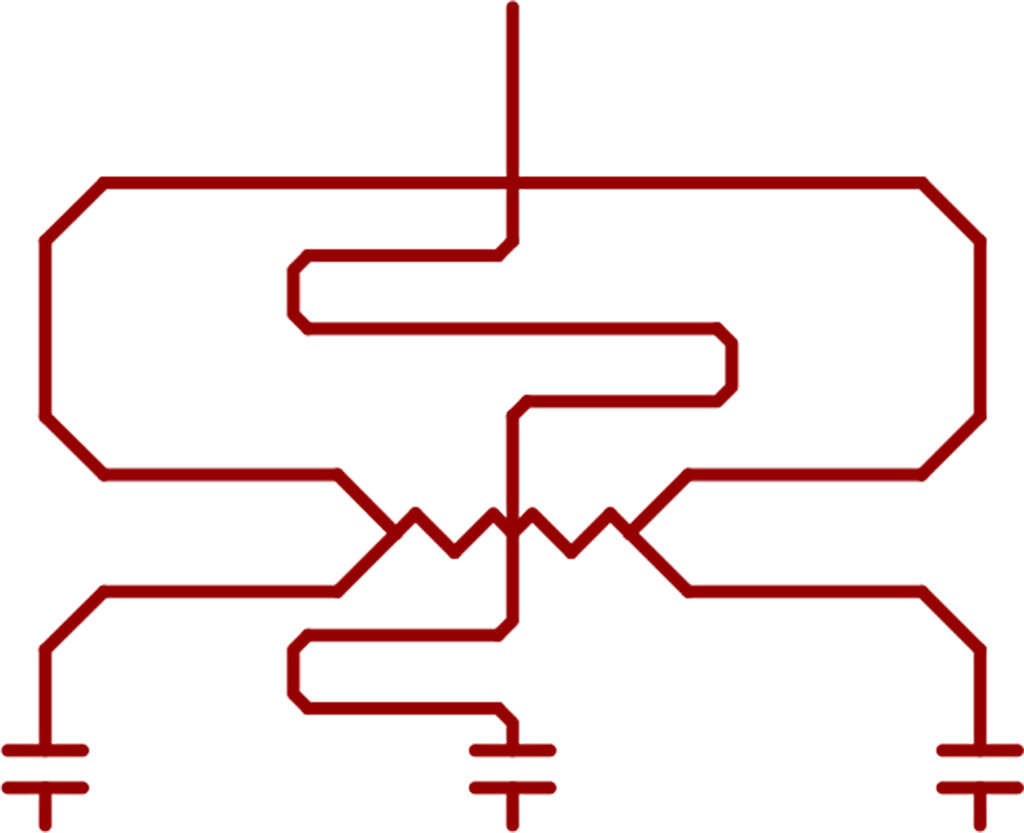

Passive Wilkinson; DC Block
all ports (3)
Connectors ……………  SMA Female, 50 Ohm Coaxial
Body ……………………  Brass, Tri-Alloy Plate
Connector Pin …  Beryllium Copper, Gold Plate
Insulator ……………  PTFE, Virgin Electrical Grade
Housing …………………  Aluminum, Clear Chem Film
Operating Temp …  -65°C to +85°C
Weight ……………………  292 Grams
Frequency
Range
Insertion Loss
above 4.77 dB
Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698 - 2700 MHz 0.6 dB max 0.2 dB max 3° max 18 dB min 1.30 : 1 max 1.25 : 1 max

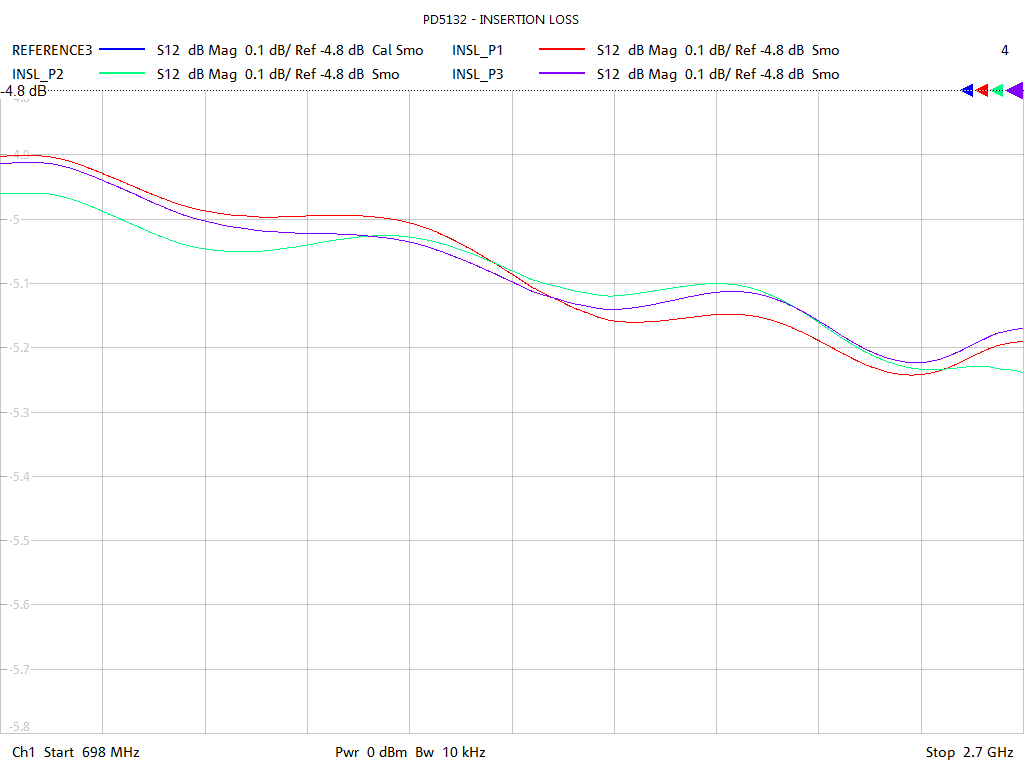

3 Way, SMA, DC Blocking L-Band Power Splitter - Insertion Loss
Insertion Loss Test Sweep for Model PD5132 from INSTOCK Wireless.
3 Way, SMA, DC Blocking L-Band Power Splitter - Isolation
Isolation Test Sweep for Model PD5132 from INSTOCK Wireless.
3 Way, SMA, DC Blocking L-Band Power Splitter - VSWR
Input Return Loss Test Sweep for Model PD5132 from INSTOCK Wireless. Output Return Loss Test Sweep for Model PD5132 from INSTOCK Wireless.

Input Return Loss

Output Return Loss

PD5132 - 3 Way, SMA, DC Blocking L-Band Power Splitter Test Data
