GPS350 - GPS/GNSS Signal Splitter
1x3, BNC, 1000 - 2000 MHz, 50 Ohm, Passive
USD icon click to view pricing Pop-up icon
- GPS L1 - L5, GLONASS, Galileo splitter
- Low Insertion Loss (0.3 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- 15 VDC & 75 mA max on DC block ports
- Tri Alloy BNC Female (Jack) 50 Ohms
above 4.77 dB
|1000-2000 MHz||0.4 dB max||0.2 dB max||5° max||20 dB min||1.20 : 1 max||1.25 : 1 max|
|Circuit Design|| Wilkinson; 1 DC pass
, 2 DC block w/ 200Ω internal load
|Connectors||BNC Female, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|3 Way Power Divider RF Input Ratings|
|1.2 : 1||20 Watts||20 Watts|
|2.0 : 1||20 Watts||5 Watts|
|∞||10 Watts||1 Watt|
|3 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||3 X 6.67 Watts||3 X 0.33 Watts|
|Non-Coherent||3 X 0.67 Watts|
GPS350 Features & Benefits
GPS350 is a three way, passive, GPS signal splitter ideal for splitting a GPS antenna signal between three receivers while providing a DC current path to power a remotely located active GPS antenna from one receiver while blocking the DC path from the others. Furnished with BNC female connectors all ports. A special feature is the 200 ohm internal load that provides a current drain for the GPS receivers not powering the antenna while maintaining optimum 50 ohm impedance match at all ports. Some GPS receivers will incorrectly sense an antenna fault when there is no current draw (due to the DC block). The 200 ohm internal load provides a simulated antenna current drain which prevents receiver faulting. Max voltage rating at the DC blocked port is 15 VDC; maximum current rating is 75 mA. Max voltage rating at the DC pass port is 50 VDC; max current rating is 2000 mA.

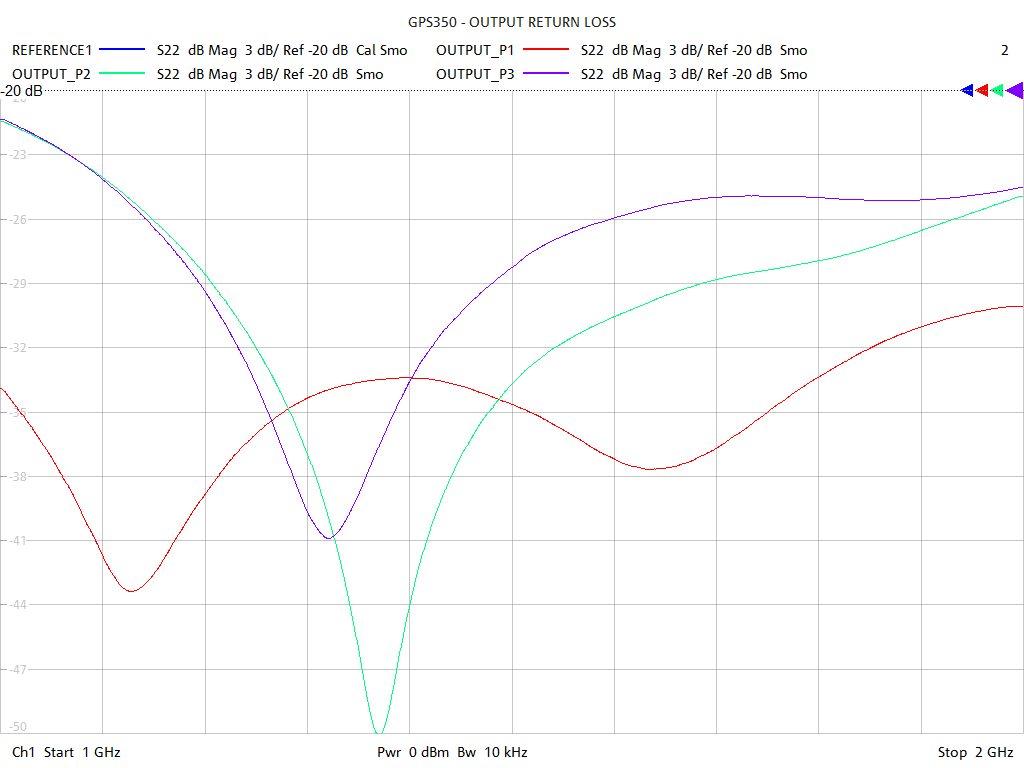

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the 4.77 dB power split), 20 dB min isolation, 1.20:1 max input VSWR and 1.25:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 5 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 3 way GPS splitter test sweeps for details. DC block and 200 ohm internal load are specially designed to be RF transparent with negligible effect on performance.
Mechanical features include precision CNC, brass, 50 ohm BNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and lowcontact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" dia (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 2.98" wide by 2.98" deep by 0.88" high (75.7 x 75.7 x 22.2 mm). The BNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 196 grams. See 3 way GPS signal splitter outline drawing for more information.
Model GPS350 is a 3-way, passive, BNC, GNSS splitter covering all frequencies from 1000 to 2000 MHz with best-in-class performance for GPS L1, L2, L3, L4, L5, GLONASS and Galileo global navigation satellite positioning system applications, and is deployed worldwide.
