GPS412 - 4 Way GPS / GNSS Signal Splitter
Passive, 1-2 GHz, SMA, DC Block+200Ω Load 4 Ports
USD icon click to view pricing Pop-up icon
- GPS L1 - L5, GLONASS, Galileo splitter
- Low Insertion Loss (0.4 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- 15 VDC & 75 mA max on DC block ports
- Tri Alloy SMA Female (Jack) 50 Ohms
above 6.02 dB
|1000-2000 MHz||0.6 dB max||0.3 dB max||3° max||22 dB min||1.30 : 1 max||1.20 : 1 max|

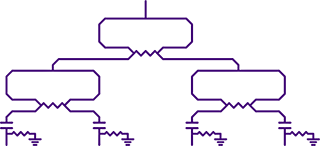

|Circuit Design|| Passive Wilkinson; All ports
DC block w/ 200Ω internal load
|Connectors||SMA Female, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Clear Chem Film|
|Operating Temp||-65°C to +85°C|
|4 Way Power Divider RF Input Ratings|
|1.2 : 1||20 Watts||20 Watts|
|2.0 : 1||20 Watts||10 Watts|
|∞||10 Watts||1 Watt|
|4 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||4 X 5 Watts||4 X 0.25 Watts|
|Non-Coherent||4 X 0.5 Watts|
GPS412 Features & Benefits
GPS412 is a four way, SMA, GPS signal splitter with four (4) DC block ports furnished with 200 ohm internal load. This model is ideal for splitting a common GPS antenna signal or GPS simulator signal between up to four (4) receivers while blocking the DC current path from all GPS receivers. A special feature is the 200 ohm internal load that provides a current drain for the GPS receivers not powering the antenna while maintaining optimum 50 ohm impedance match and excellent RF performance at all ports. Some GPS receivers will incorrectly sense an antenna fault when there is no current draw (due to the DC block). Max voltage rating at the DC blocked ports is 15 VDC; maximum current rating is 75 mA.

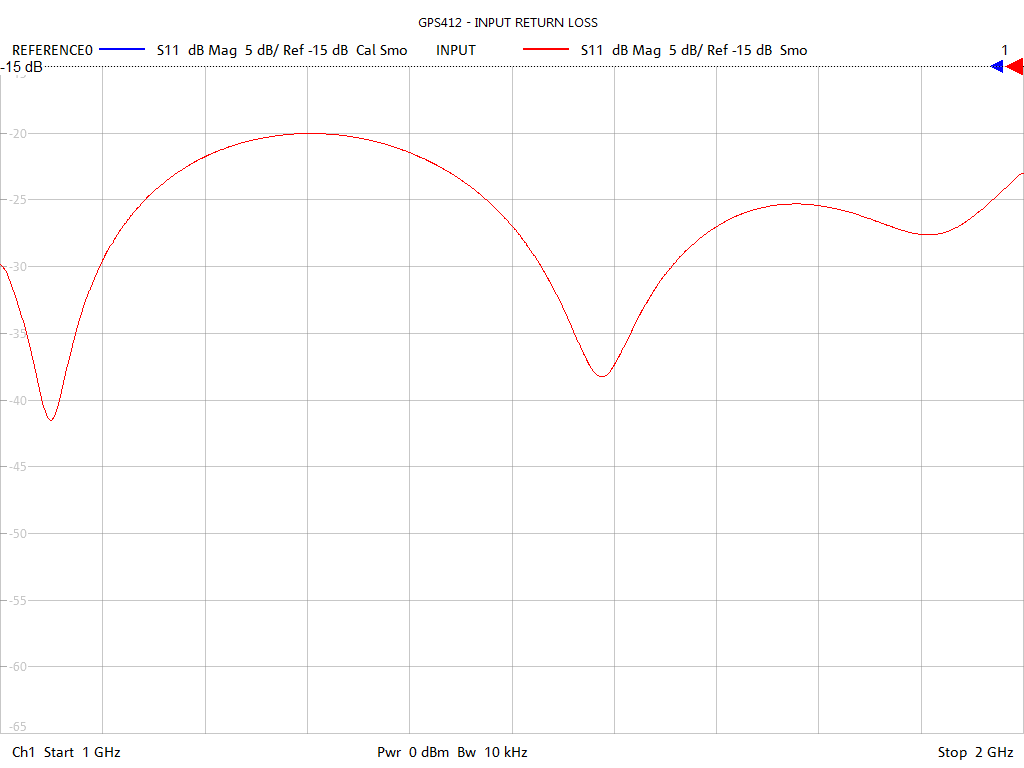

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.6 dB max insertion loss (above the 6.02 dB power split), 22 dB min isolation, 1.30:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.3 dB amplitude balance and 3 degrees phase balance. Narrow band GPS performance in your band of interest may be even better. See 4 way GPS splitter test sweeps for details. DC block and 200 ohm internal load are specially designed to be RF transparent with negligable effect on performance.
Mechanical features include precision CNC, brass, 50 ohm SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" dia (3.18 mm) through holes. RoHS compliant construction includes no-lead solder and a finish free of hexavalent chromium.
Housing dimensions are 3.98" wide by 2.98" deep by 0.88" high (101.1 x 75.7 x 22.2 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 383 grams. See 4 way GPS signal splitter outline drawing for more information.
Model GPS412 is a 4-way, passive, SMA, GNSS splitter covering all frequencies from 1000 to 2000 MHz with best-in-class performance for GPS L1, L2, L3, L4, L5, GLONASS and Galileo global navigation satellite positioning system applications, and is deployed worldwide.
