PD1160 - RF Power Divider, Combiner, Splitter
6 Way, SMA Female (Jack), 0.698-2.700 GHz, 40 Watts
USD icon click to view pricing Pop-up icon
- Broadband Frequency (0.698 - 2.700 GHz)
- Low Insertion Loss (0.5 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.15 : 1 avg)
- Tri Alloy SMA Female (Jack) Low PIM
above 7.78 dB
|698-2700 MHz||1.1 dB max||0.3 dB max||5° max||18 dB min||1.40 : 1 max||1.20 : 1 max|
|Circuit Design|| Wilkinson Microstrip passes
DC Current thru all ports
|Connectors||SMA Female, 50 Ohm Coaxial|
|Connector Body||Brass, Tri-Alloy Plate|
|Connector Pin||Beryllium Copper, Gold Plate|
|Connector Insulator||PTFE, Virgin Electrical Grade|
|Housing||Aluminum, Yellow Iridite|
|Operating Temp||-65°C to +85°C|
|6 Way Power Divider RF Input Ratings|
|1.2 : 1||40 Watts||40 Watts|
|2.0 : 1||40 Watts||20 Watts|
|∞||20 Watts||2 Watts|
|6 Way Power Combiner RF Input Ratings|
|Input Signals||In-Phase||180° Out-of-Phase|
|Coherent||6 X 6.67 Watts||6 X 0.33 Watts|
|Non-Coherent||6 X 0.66 Watts|
PD1160 Features & Benefits
PD1160 is an RF broadband, 6 way, power divider, power combiner furnished with SMA female (jack) coaxial connectors. All wireless band frequencies from 698 - 2700 MHz are covered with optimal performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 6 way power divider input rating tables for details.

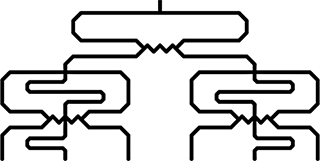

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). A true 6 way power divider, power combiner with equal power split and balance, the PD1160's electrical performance is highlighted by 1.1 dB max insertion loss (above the 7.78 dB power split), 18 dB min isolation, 1.40:1 max input VSWR and 1.20:1 max output VSWR. Equal power split and balance is displayed by 0.3 dB max amplitude balance and 5 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 6 way SMA female power divider test sweeps for specific details.
Mechanical features include precision CNC turned, brass, SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coax mating. Long term operation and superior shielding is maintained by the rugged CNC machined aluminum housing with yellow iridite finish. Mounting is provided by four 0.125" dia (3.18 mm) thru holes.
Housing dimensions are 5.98" wide by 2.98" deep by 0.75" high (151.9 x 75.7 x 19.1 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 471 grams. See 6 way power divider outline drawing for more information.
The PD1160 6-way, SMA female (jack), power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier combining & receiver dividing to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
